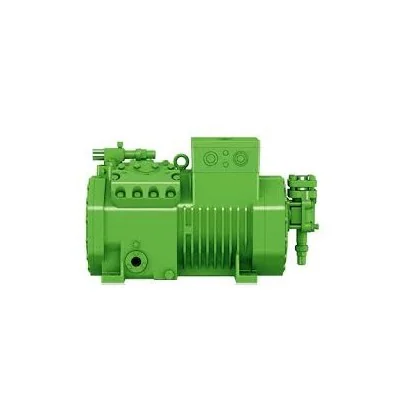

Compresor BITZER NEW ECOLINE 6JE-33Y (40P)

7.531,22

110 disponibles

SKU: SKU-1719933412286-7283 Categoría: Etiqueta:

Descripción

Technical Data
Displacement (1450 RPM 50Hz) 95,3 m³/h
Displacement (1750 RPM 60Hz) 115,02 m³/h
No. of cylinder x bore x stroke 6 x 65 mm x 55 mm
Weight 231 kg
Max. pressure (LP/HP) 19 / 32 bar
Connection suction line 54 mm – 2 1/8”
Connection discharge line 35 mm – 1 3/8”
Oil type R134a/R407C/R404A/R507A/R407A/R407F BSE32(Standard) / R134a tc>70°C: BSE55 (Option)
Oil type R22 (R12/R502) B5.2(Option)
Motor data
Motor version 1
Motor voltage (more on request) 380-420V PW-3-50Hz
Max operating current 53.2 A
Winding ratio 50/50
Starting current (Rotor locked) 165.0 A Y / 275.0 A YY
Max. Power input 30,0 kW

Información adicional

Marca

BITZER

Condición

NUEVA

Referencia

BITZER 6JE-33Y 122391
